The quickest way to remove a stuck drill bit is to reverse the drill’s rotation while applying steady, gentle pressure. If that fails, check for debris in the chuck, try lubricating the bit, or use locking pliers for extra grip. Understanding why the bit got stuck in the first place helps you prevent the problem from recurring.

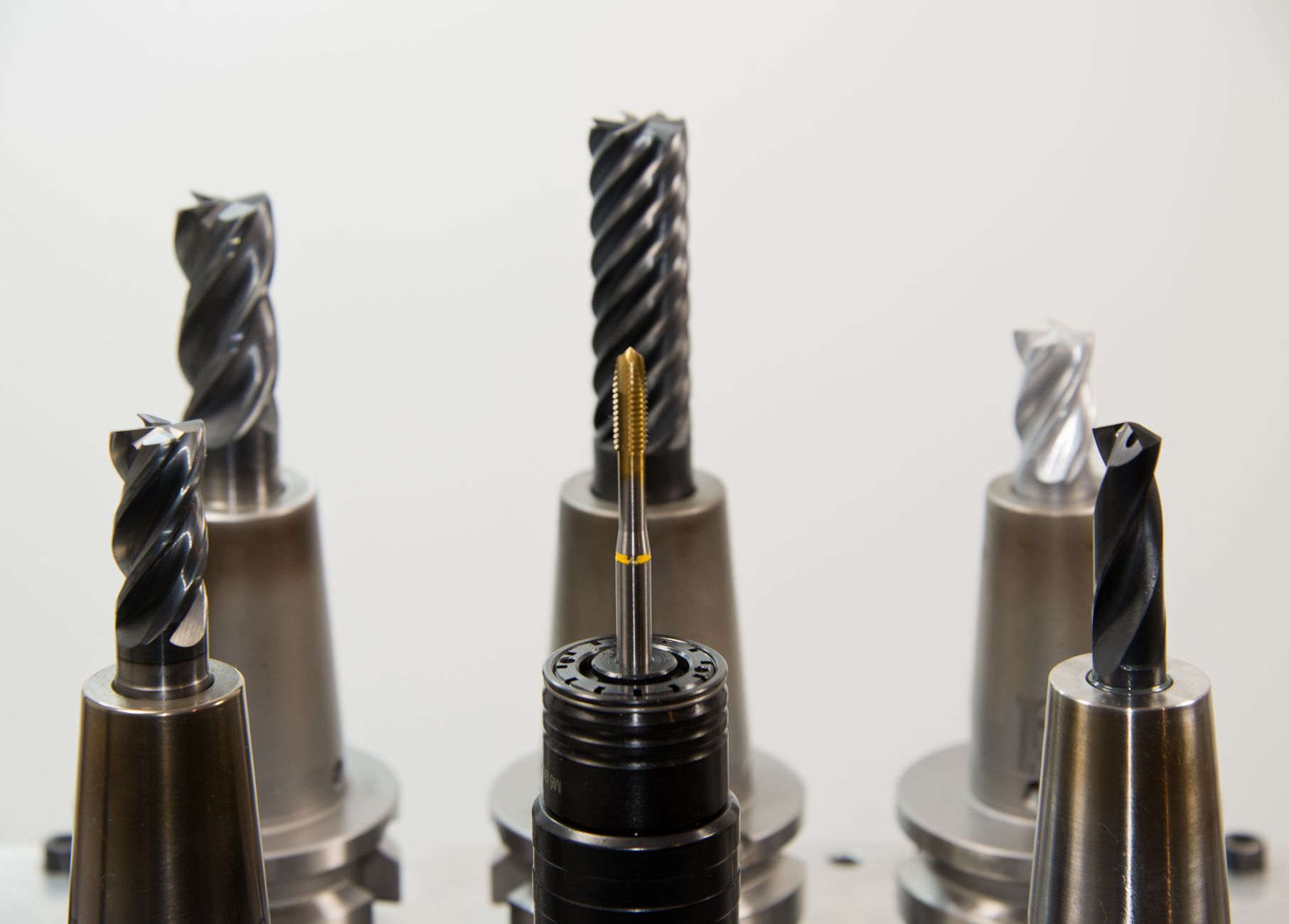

Illustration for: How to Remove a Stuck Drill Bit: Causes and Solutions

Why Does a Drill Bit Get Stuck?

A drill bit can seize for several reasons, and identifying the cause is the first step to freeing it. The most common culprit is a jammed chuck, often from debris or overtightening. When the chuck’s jaws grip too tightly, they can deform or lock around the bit’s shaft.

Another frequent cause is the bit binding in the material, especially in wood with knots or metal with hard spots. The bit’s flutes can clog with chips, increasing friction until the bit stops turning. Heat from friction can also cause the bit to expand and seize inside the hole.

Jammed Chuck from Debris or Overtightening

Debris like sawdust, metal shavings, or rust can accumulate in the chuck’s jaws, preventing them from releasing the bit. Overtightening the chuck, especially with a keyless chuck, can also cause the jaws to bind. If you’ve been using the drill for a while without cleaning the chuck, this is a likely cause.

To confirm, try turning the chuck by hand. If it feels gritty or won’t budge, debris is likely the issue. A quick spray of penetrating oil or compressed air can often dislodge the particles and free the mechanism.

Bit Binding in the Material

When a drill bit binds, it means the cutting edges have dug into the material too deeply, often because of excessive feed pressure or a dull bit. In wood, this happens near knots or when drilling at an angle. In metal, it occurs when the bit hits a hard inclusion or when the hole isn’t properly lubricated.

Binding can also happen if you’re drilling too fast without clearing chips. The bit’s flutes become packed, and the friction locks it in place. Reversing the drill while pulling back slightly can sometimes release the bit, but if not, you may need to drill a relief hole nearby to reduce pressure.

Heat Expansion and Galling

Friction generates heat, which causes the drill bit to expand slightly. In tight holes, this expansion can make the bit seize. This is especially common in metals like stainless steel, which can gall or weld to the bit under high heat and pressure.

Using cutting fluid or a lubricant while drilling helps reduce heat and prevent galling. If your bit is already stuck due to heat, letting the assembly cool down can sometimes shrink the bit enough to free it. Applying a cold spray or ice to the bit (not the chuck) can speed this up.

Damaged or Worn Chuck Jaws

Over time, the jaws of a drill chuck can wear down or become misaligned, especially if you often use bits of varying shank sizes. Worn jaws may not release the bit evenly, causing it to stick. If you notice that your drill has been hard to tighten or loosen recently, the chuck may need replacement.

Inspect the jaws for visible damage like cracks, chips, or uneven gaps. If the chuck is removable (most are threaded or held by a screw), you can replace it. A damaged chuck is often cheaper to replace than to repair, and it’s a straightforward fix for most drill models.

How to Fix a Stuck Drill Bit

  • If the chuck is jammed: spray penetrating oil into the chuck, let it sit for a few minutes, then try turning the chuck by hand or with a wrench.
  • If the bit is bound in the material: reverse the drill and pull back gently while applying steady pressure. If that fails, drill a small relief hole next to the stuck bit to release pressure.
  • If heat is the issue: let the bit cool down completely, then try reversing the drill. For stubborn cases, apply ice directly to the bit (not the chuck) to shrink it.
  • If the chuck jaws are worn: replace the chuck or the entire drill if the chuck is not serviceable.

If you’re working on a car and the stuck bit is in a tight spot, having the right tools for diagnostics can make the job easier. For instance, a reliable OBD2 scanner can help you identify mechanical issues that might be related to your project.

Frequently Asked Questions

Can I use a hammer to free a stuck drill bit?

Yes, but with caution. Tapping the side of the chuck or the bit itself with a hammer can help dislodge debris or break a light bind. However, avoid hitting the chuck directly if it’s made of plastic, as it can crack. Use a rubber mallet instead of a metal hammer to reduce the risk of damage.

What should I do if the drill bit breaks off in the material?

If the bit breaks off, you’ll need to extract it. Use a screw extractor kit designed for broken bolts and bits. Drill a small pilot hole into the broken bit’s center using a left-handed drill bit, then insert the extractor and turn counterclockwise. If the bit is flush with the surface, you may need to grind a flat spot first.

How can I prevent a drill bit from getting stuck in the future?

Use sharp bits appropriate for the material, apply cutting fluid when drilling metal, and clear chips regularly by backing the bit out. Avoid forcing the drill; let the bit do the work. Clean your chuck periodically with compressed air and lubricate the jaws with a light oil to prevent debris buildup.

Is it safe to use pliers on the chuck to free a stuck bit?

Yes, locking pliers (Vise-Grips) can provide extra leverage on the chuck’s outer collar. Wrap the chuck in a cloth to protect it from scratches, then clamp the pliers and turn counterclockwise. Be careful not to overtighten the pliers, as this can damage the chuck’s mechanism.

Final Thoughts

Removing a stuck drill bit usually comes down to reversing the drill, cleaning the chuck, or using lubrication and cooling. By addressing the root cause, you can free the bit without damaging your drill or workpiece.
