If your air compressor keeps running but won’t build pressure, the most likely cause is a leak in the system, a faulty check valve, or a worn piston ring. The compressor runs continuously because it cannot reach its cut-out pressure, so it never shuts off. This issue can stem from something as simple as a loose drain valve or as involved as a failed pump assembly. Identifying the exact source requires a systematic check of the compressor’s components, starting with the most common and accessible parts.

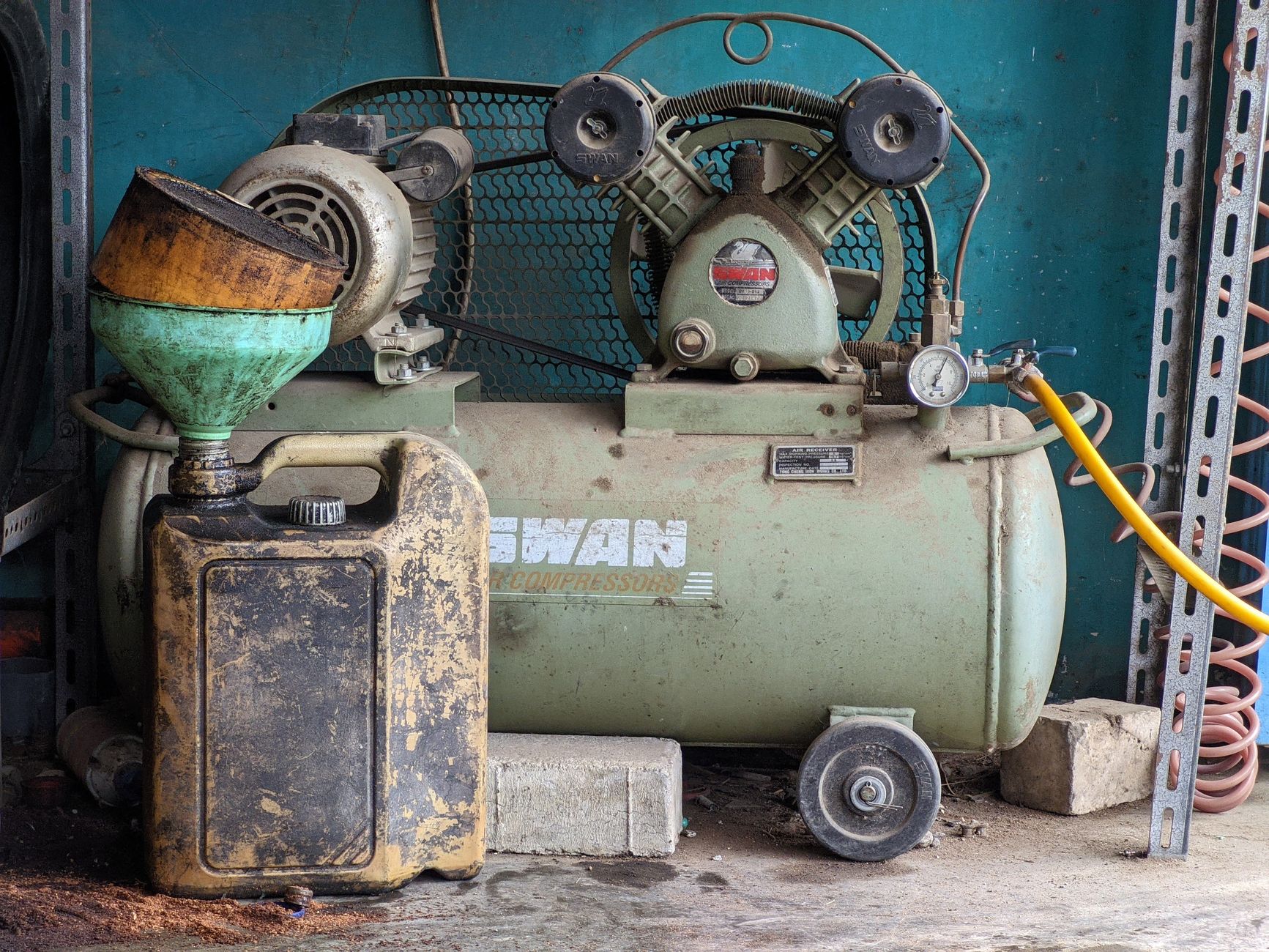

Illustration for: Air Compressor Keeps Running But Won't Build Pressure: Causes and Fixes

1. Leak in the Air System

The most common reason an air compressor keeps running but won’t build pressure is a leak somewhere in the system. Air escaping from a fitting, hose, coupler, or the tank itself prevents the compressor from reaching its cut-out pressure. Even a small leak can cause the compressor to run constantly.

To check for leaks, listen for hissing sounds while the compressor is running. You can also apply a soapy water solution to fittings and connections; bubbles will form at the leak point. Tighten loose fittings or replace damaged hoses and couplers as needed.

2. Faulty Check Valve

The check valve, located where the air line from the pump enters the tank, allows air to flow into the tank but prevents it from flowing back out when the pump stops. If the check valve fails, air escapes back through the pump, causing the compressor to run continuously without building pressure.

To test the check valve, remove the line from the pump side and listen for air escaping from the valve when the compressor is running. If air flows back out, the valve needs replacement. This is a relatively straightforward repair on most compressors.

3. Worn or Damaged Piston Rings or Valves

Inside the compressor pump, piston rings seal the compression chamber. Over time, these rings can wear out, allowing air to blow past the piston instead of being compressed. Similarly, the reed valves (intake and exhaust) can crack or become unseated, reducing compression efficiency.

If the compressor runs but builds pressure very slowly or not at all, and there are no external leaks, the pump itself is likely worn. You may notice oil consumption or oil in the air output. Rebuilding or replacing the pump assembly is usually the solution.

4. Clogged Air Filter or Intake

A restricted air intake can prevent the pump from drawing enough air to build pressure. A dirty or clogged air filter reduces the volume of air entering the compression chamber, causing the compressor to run longer and struggle to reach cut-out pressure.

Check the air filter element and clean or replace it if necessary. Also inspect the intake tubing for any obstructions or kinks. This is one of the easiest fixes and should be checked early in your troubleshooting process.

5. Pressure Switch or Unloader Valve Malfunction

The pressure switch controls when the compressor starts and stops. If the switch is set too high or is failing, it may never signal the compressor to stop. The unloader valve, which releases trapped air from the pump head when the compressor stops, can also stick open, preventing pressure buildup.

Listen for a continuous hissing from the unloader valve when the compressor is running. If the valve is stuck open, it bleeds off the pressure the pump generates. Cleaning or replacing the unloader valve and adjusting or replacing the pressure switch can resolve this.

6. Tank Drain Valve Left Open

Sometimes the simplest cause is overlooked. If the tank drain valve (located at the bottom of the tank) is left open or is not fully closed, air will escape continuously. This prevents the tank from pressurizing, and the compressor will run without ever stopping.

Check the drain valve to ensure it is fully closed. If it is closed and still leaking, the valve seat may be damaged, requiring replacement. This is a quick fix that can save you hours of unnecessary troubleshooting.

How to Fix an Air Compressor That Keeps Running But Won’t Build Pressure

Follow these steps in order, from simplest to most involved, to resolve the issue.

  • Check and close the tank drain valve fully.
  • Inspect all fittings, hoses, and couplers for leaks; tighten or replace as needed.
  • Clean or replace the air filter element.
  • Test the check valve and replace if faulty.
  • Clean or replace the unloader valve.
  • Inspect the pressure switch and adjust or replace if needed.
  • If none of the above works, the pump piston rings or valves are likely worn and require pump rebuild or replacement.

Once you have the compressor running properly, it is a good idea to keep an eye on its overall health. For example, using a diagnostic tool like an OBD2 scanner on your vehicle can help you monitor engine performance, but that is a separate topic.

Frequently Asked Questions

Can a bad pressure switch cause the compressor to run continuously?

Yes, a faulty pressure switch can fail to signal the compressor to stop, causing it to run without building pressure. If the switch contacts are welded shut or the diaphragm is damaged, the compressor will run constantly regardless of the tank pressure.

Why does my air compressor build pressure slowly?

Slow pressure buildup usually indicates a worn pump, a clogged air filter, or a small leak. The compressor may still reach cut-out pressure eventually, but it takes much longer than normal. Check the filter and listen for leaks first.

Is it safe to use a compressor that runs continuously?

Running a compressor continuously can overheat the pump and motor, leading to damage or fire risk. It is not safe to operate a compressor that cannot reach cut-out pressure. Troubleshoot and fix the issue before further use.

How do I know if my compressor pump is worn out?

Signs of a worn pump include excessive oil consumption, oil in the air output, and inability to build pressure even after checking for leaks and valve issues. A compression test can confirm pump wear; consult your compressor manual for specifications.

An air compressor that keeps running but won’t build pressure almost always has a leak, a faulty valve, or a worn pump. Start with the simplest checks like the drain valve and air filter, then move to the check valve and unloader valve.
